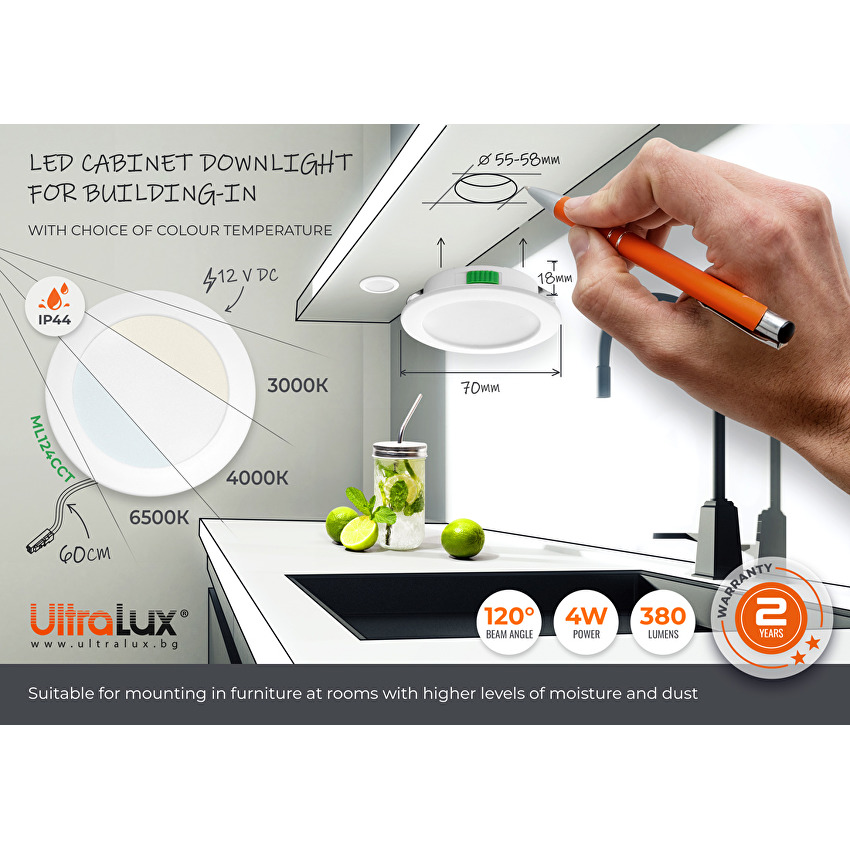

LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

Aрт. № ML124CCT
LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white
LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

LED cabinet downlight for building-in, round, 4W, 3000K/4000K/6500K, 12V DC, IP44, white

Art № ML124CCT
description:

Ultralux is expanding its range with two new models of LED recessed lights designed for furniture, cabinets, shelves, and racks. These models are available in black (ML124CCTB) and satin nickel (ML124CCTSN). Like the already well-known white LED furniture light ML124CCT, these models feature selectable color temperature, standard compact product dimensions and following advantages:

  • Colour temperature (3000K/4000K/6500K) could be chosen by a switch, placed on the back of the product.

Attention! Change of colour temperature should be carried out only when the power supply is turned off!

  • Standard dimensions and mounting hole. This allows the product to replace the less efficient halogen cabinet downlights.
  • Plug and play – the power cable ends with a power connector that fits the power supplies for cabinet lighting Ultralux.
  • The product could be used in rooms with higher levels of moisture and dust (bathrooms, corridors, staircases) in accordance with ingress protection rate IP44
  • Safe low supply voltage 12 V DC. Minimal danger from an eventual electrical damage.
  • Mounting cut could be between 55 and 58 mm.
  • Housing made from thermal-conductive technical plastic that ensure optimal cooling.

Attention: Make sure you allow enough space behind the downlight so that it could cool properly.

  • Beam angle 120° creates even light distribution.
  • Built-in non-dimmable driver guarantees reliable operation and long exploitation period.
  • High colour rendering index Ra≥80. The downlight realistically recreates the colours of the illuminated objects and it is suitable for exposition in museums and exhibition halls.
  • The length of the supply cable is 60 cm, more convenient when mounting.
specifications:
Protection rating IP44
Working temperature range -10 °C ÷ +40 °C
On/Off cycles >15000
Dimensions ø70/18mm
Mounting hole ø55-58mm
Lumen Maintenance LM80 >25000h
Colour white
Starting time <0.2sec
Cable length 600mm
Warranty 2 years
Shape round
Power 4W
Class III
Voltage DC 12V
Rated luminous flux 380lm
Correlated Color Temperature (CCT) 3000K/4000K/6500K
Color Rendering Index (CRI) ≥80
Beam angle 120⁰
LED type SMD2835
